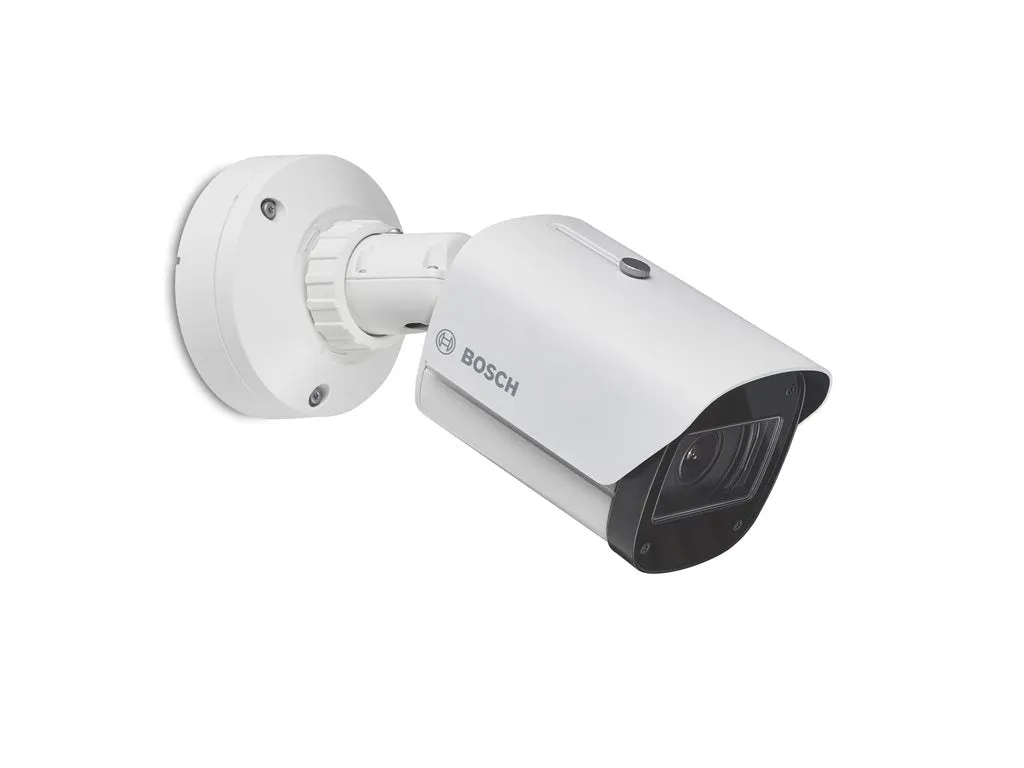

Bosch DINION 7100i IR NBE-7704-AL - Network surveillance camera - bullet - indoor, outdoor - dustproof / waterproof / vandal-proof - color (Day&Night) - 8.3 MP - 3840 x 2160 - auto iris - motorized - audio - GbE - MJPEG, H.264, H.265 - DC 12 - 26 V / AC 24 V / PoE Plus Class 3

• Starlight performance
  The sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
• High Dynamic Range
  The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
• Intelligent Video Analytics Pro (IVA Pro)
  The camera comes with the IVA Pro Building and the IVA Pro Perimeter pre-installed and brings highly reliable deep-learning based detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded and congested. Being extremely resistant to false triggers caused by challenging environments with rain, wind (moving trees), snow, hail, and water reflections as well as shadows and bugs, it reliable detects, tracks, and classifies objects. Configuration effort is minimized and made easy by removing the need for calibration.
• IR illumination
  The NBE-7704-AL offers integrated advanced intelligent infrared (IR) illumination. The IR range covers a distance of up to 60 m (197 ft). The combination of multiple IR beam angles, linked to the zoom position of the lens, ensure uniform illumination of the full scene, without hot spots or dark corners in any field of view. Smart IR ensures a balanced image without over exposure on objects closer to the camera.
• H.265 high-efficiency video encoding
  The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
• DORI coverage
  DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area.
• Scene modes
  Multiple configurable modes are provided with excellent settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as sodium lighting, fast moving objects, or dark environments. Resists rain, dust, and tampering with reliable operation across a wide temperature range Suitable for indoor and outdoor usage. The robust design of the camera is rated to IP66/IP67 and IK10 standards, safeguarding the camera against rain and dust while also offering protection against vandalism and tampering. The camera can operate in a wide ambient temperature range between -50°C up to 60°C (-58°F to 140°F).
• Electronic image stabilization
  The camera incorporates a built-in, electronic image stabilization and algorithm that allows to sense continuous vibration. If it detects vibration, the device dynamically corrects the shaky video in both vertical and horizontal axis. The image stabilization function delivers exceptional image clarity and a stable field of view on the monitor. The EIS crop factor is adjustable. This helps the camera deliver exceptional image clarity, by allowing you to optimize the balance between field of view and the maximum vibration amplitude.
• Easy installation
  The NBE-7704-AL uses the proven 3-step installation concept. The mounting plate has multiple hole patterns for installation on electrical boxes (4-inch square and double gang) and on the Bosch Universal Accessories. The back box can be attached with a simple rotate and click. All wires can be connected in the back box. Power can be supplied through Power-over-Ethernet. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost effective, as cameras do not require a local power source. The design of the camera focuses on robustness and stability. A patented optimized swivel design further helps with the ease of installation.

The NBE-7704-AL is an extremely robust bullet camera for mission-critical applications. The ruggedized and stable design has exceptional corrosion resistance for use in any outdoor application.
Using 1/1.8" sensors with 8MP resolution, the NBE-7704-AL provides the perfect balance between high resolution and extreme low light sensitivity. Starlight and HDR technology combined with powerful smart IR illumination ensure highly detailed images even in the most challenging situations. The cameras have a powerful, embedded processor with dedicated hardware to support advanced machine learning and deep neural network-based Video Analytics.
Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
With the combination of the robust housing, exceptional image quality, and the powerful video analytics, the NBE-7704-AL is the ideal choice for the most demanding outdoor applications, including traffic monitoring, critical infrastructure, and perimeter security.

• Starlight technology for low-light performance with maximum detail
• High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
• IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
• Powerful long range (850 nm) intelligent IR illumination up to 60 m (197 ft)
• Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security

What's in the Box:

• Bosch DINION 7100i IR NBE-7704-AL
• Screwdriver, grommets, allen key, 3 installer UX labels
